Pinnacle Speed at 450 FPS
Measuring in at just 29″l. overall and 6″ axle-to-axle, yet delivering blistering 450 FPS speed, the Ravin R29X is revolutionizing the crossbow game with its mind-blowing combination of speed, power, and downrange accuracy. With a fully integrated Versa-Draw cocking system that requires just 12 lbs. of cocking force, the R29 is incredibly easy to cock. Plus, everything about this game-changing Crossbow is engineered for perfect balance and accuracy. HeliCoilTM technology and a Frictionless FlightTM system deliver dead-straight nock point travel with zero rail friction for scorching speed and incredibly accuracy that will have you shooting 3-inch groups at 100 yds. virtually right out of the box.

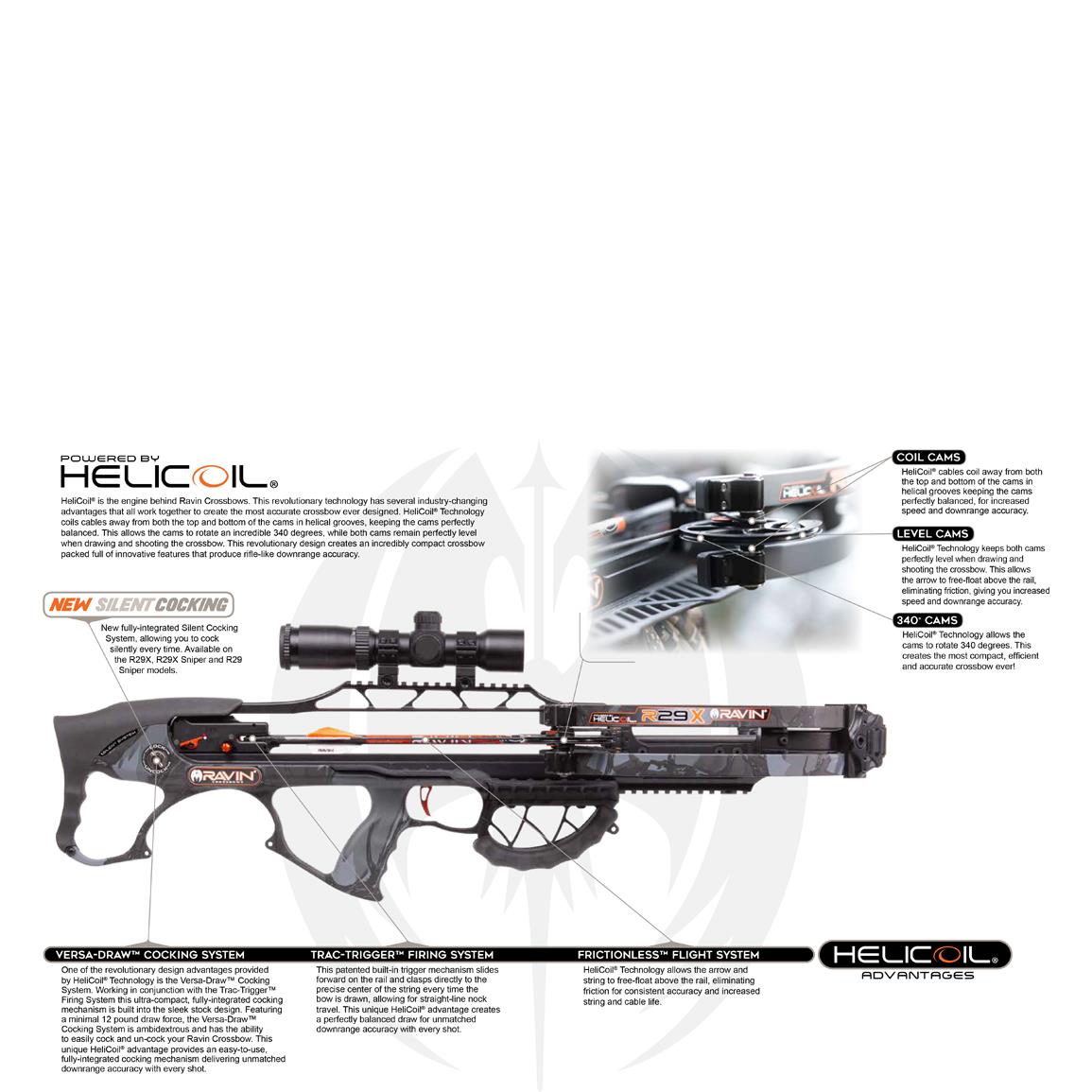

The Ravin R29 Crossbow provides rifle-like accuracy in an ultra-compact package. And it’s all thanks to the new and improved HelicoilTM Technology. Advanced HeliCoil Technology coils cables away from both the top and bottom of the cam in helical grooves, keeping the limbs and cams perfectly balanced and allowing the cams to rotate an amazing 340º. Both cams remain perfectly level when drawing and shooting, which helps deliver rifle-like accuracy at greater distances.
FrictionlessTM Flight System
Every bow hunter knows that friction is the enemy of speed and accuracy. Ravin has solved that dilemma with their innovative Frictionless Flight System. Unlike traditional crossbow designs in which the arrow rides directly on the rail, the Frictionless Flight System allows the arrow and string to free float above the rail. Zero friction means increased speed and accuracy, plus extended life for strings and cables.
Trac-TriggerTM Firing System
Ravin’s Trac-TriggerTM Firing System is designed to give you the confidence and peace of mind of knowing that when you pull the trigger on the R29X, your arrow will fly true to its target every time. The Trac-TriggerTM System slides forward on the rail and clasps directly to the precise center of the string every time the bow is drawn. This allows for straight-line nock travel and creates a consistent, perfectly balanced draw for lethal downrange accuracy.
Versa-DrawTM Cocking System
Being ready when opportunity raises its head is the first step toward glory. To that end, Ravin developed the Versa-Draw Cocking System. This fully integrated, ambidextrous System requires just 12 lbs. of cocking force, making it extremely fast and easy to cock for hunters of all sizes and strengths. It works in conjunction with the Trac-Trigger Firing System to quickly and consistently put your arrow in optimal position for finding its mark.

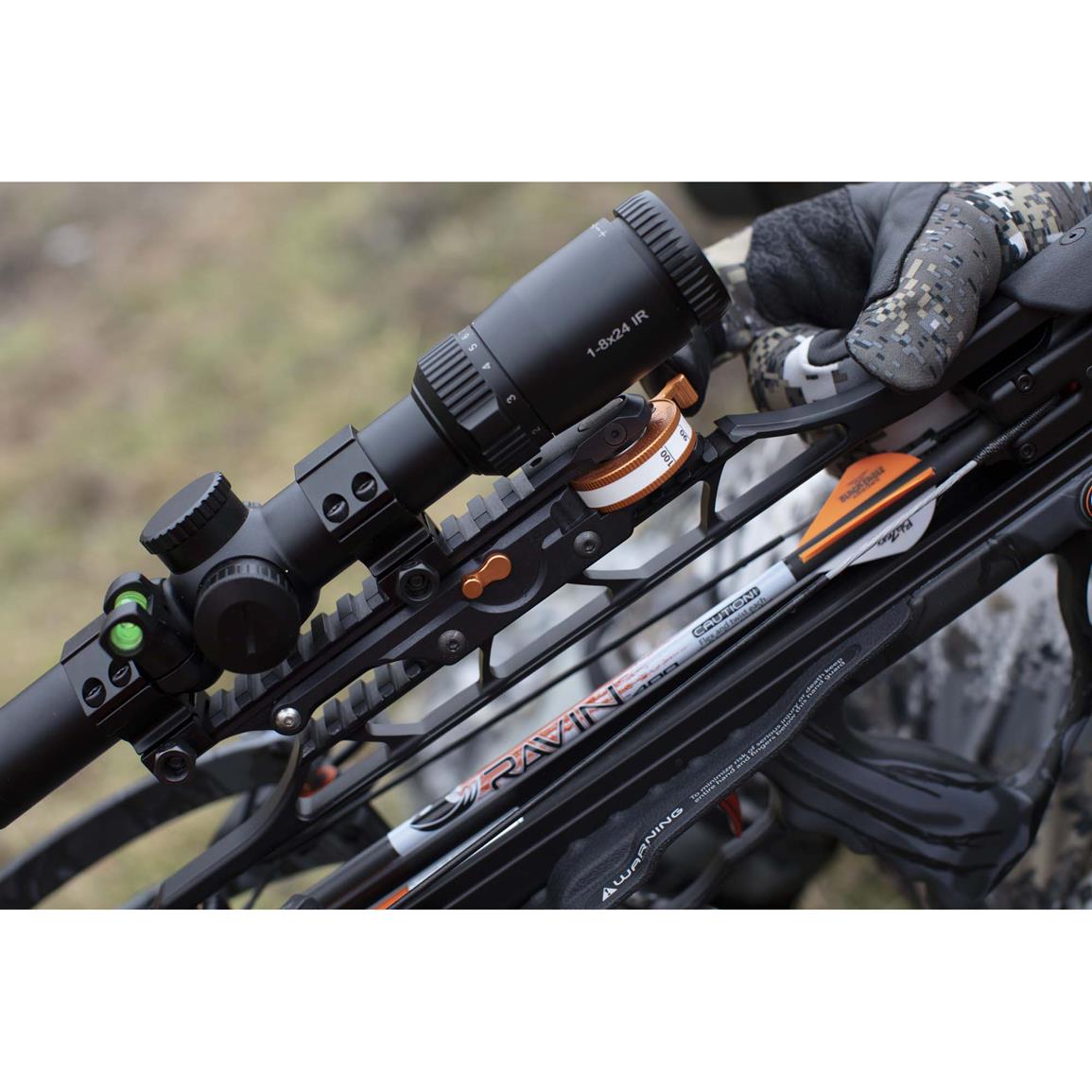

1-8x24mm Tactical Crossbow Scope and Jack Plate Adjustable Elevation Mount
When that moment of truth arrives, you can confidently pull the trigger thanks to Ravin’s new 1-8x24mm Tactical Scope and Jack Plate Adjustable Elevation Mount. The Ravin Jack Plate Mount is easy to install and makes MOA angle adjustments easy for accurate, on-target shooting. Plus, you’ll love Ravin’s new shock- and recoil-resistant scope that features fully-coated lenses, along with 10 illumination levels.
- Ravin R29X Crossbow
- Fully-integrated silent cocking system
- Durable sling mounts
- Anti-dry fire / auto safety
- Comes pre-tuned and fully assembled
- Predator dusk camouflage finish
Included Accessory Package
- 1-8x24mm tactical crossbow scope
- Jack plate adjustable elevation mount
- (6) 400-grain .001″ arrows
- (6) 100-grain practice field points
- Scope level
- Removable draw handle
- Quiver/mounting bracket
- Item Number: 716310
- Color: Predator Dusk Camouflage
- Velocity: 450 FPS
- Kinetic Energy: 180 ft.-lbs.
- Power Stroke: 12.5″
- Draw Weight: 12 lbs.
- Axle to Axle (cocked/uncocked): 6″ / 10.5″
- Overall Length: 29″
- Weight: 6.75 lbs.
- Mfg. Number: R041
